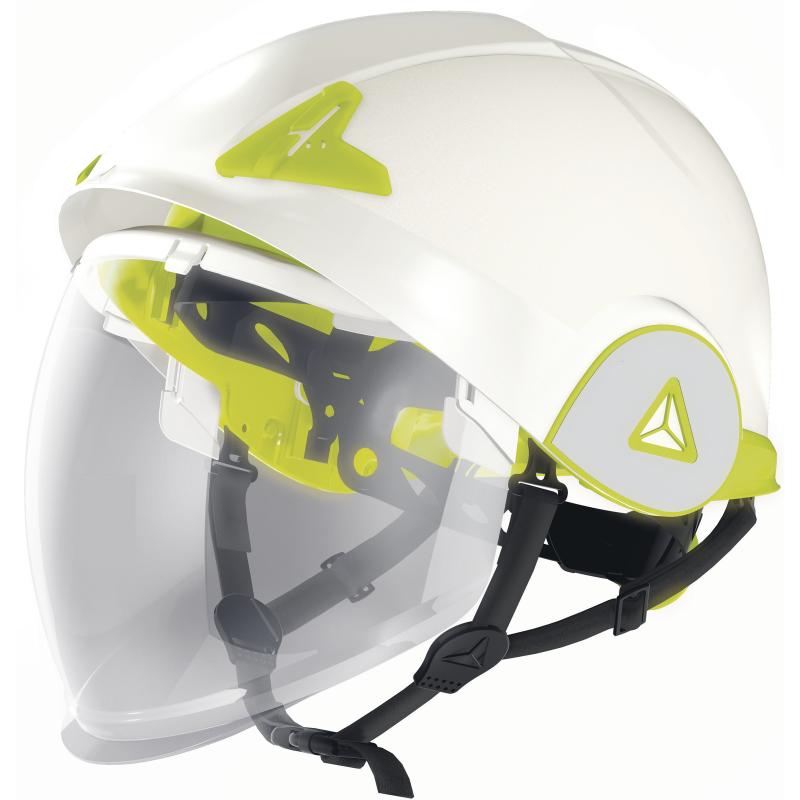

Onyx Class 1 ARC Flash Helmet & Visor

ABS dual shell safety helmet with PC retractable visor. Sport and dynamic design. 3 textile straps with 6 fixing points. Foam sweat band. One-D Rotor clamping system: head size 53 to 63 cm. 2 possible positions of the headband (top/low) for a better comfort. Retro-reflective stickers. Electrical insulation up to 1 000 V.A.C. or 1 500 V.D.C, protection against arc fault Class 1 (GS-ET 29). Visor with anti-Fog N and anti-scratch K treatments and protection against electrical arcs, and molten metals or hot liquids projections.
ABS Dual-Shell.
Polycarbonate visor.


EN397:2012 + A1:2012 Protective helmets for industry

MM Molten metal spray
LD Lateral deformation
-20°C +50°C Use : Very low temperature - -20°C / +50°C
440VAC Electric insulation
Electrically insulating helmets for use on low voltage installations
EN50365:2002 Electrically insulating helmets for use on low voltage installations

CLASS 0 Electrically insulating helmets - Class 0
EN166:2001 Personal eye-protection - Specifications

1 AT 8-1-0 9 KN Oculars
3 8-1 9 AT Frame
EN170:2002 Ultraviolet filters

2C-1.2 echelon
Additional requirements electric arc protection.
GS-ET 29:2011-05 Additional requirements electric arc protection.

8-1-0 Oculars
CLASS 1 Class
CLASS 0 Light transmittance class = Class 1 : (50% ≤ VLT(D65) < 75%) / Class 0 : (VLT(D65) ≥ 75%).
8-1 Frame
